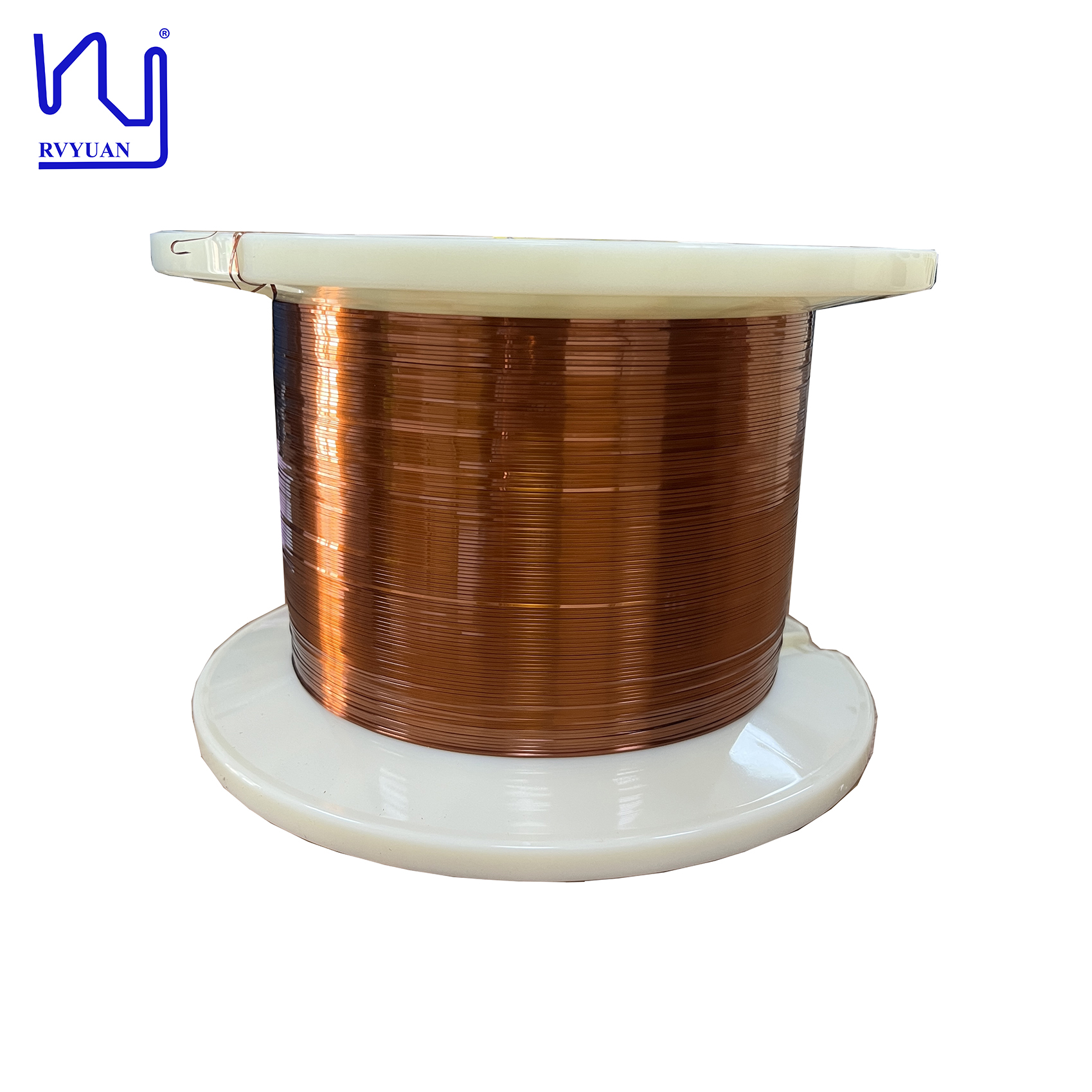

0.60mm * 3.00mm Rectangular Flat AIW Class 220C Magnet Copper Wire
This 0.6mm * 3mm rectangular flat AIW Class 220C enameled copper wire meets design requirements for lower height, smaller size, lighter weight, and increased power capacity. Ideal for electronics, electric applications, motors, network communication, smart home devices, new energy systems, automotive electronics, medical electronics, and aerospace applications.
Key Advantages
- Larger surface area than round wire at same cross-section, effectively reducing skin effect and current loss
- High space factor and fill ratio, greatly reducing resistance while passing larger current
- Higher Q value for better adaptation to high current loads
- Simple structures, excellent heat dissipation, stable performance, and consistent quality
- Maintains stable temperature rise current and saturation current in high-frequency, high-temperature environments
- Anti-EMI, minimal vibration, low noise, and suitable for high-density installation
High Space Factor - Up to 97% fill-in ratio for maximum efficiency
High Bending Resistance - No cracking under stress
The insulation thickness at corners is similar to flat surfaces, maintaining insulation integrity throughout.
Technical Parameters
| Characteristics |
Standard |
Test Result |
| Appearance |
Smooth Equality |
Smooth Equality |
| Conductor Diameter (Width) |
2.94-3.06mm |
3.006mm |
| Conductor Diameter (Thickness) |
0.591-0.609mm |
0.595mm |
| Thickness of Insulation (Width) |
0.01mm-0.04mm |
0.025mm |
| Thickness of Insulation (Thickness) |
0.01mm-0.04mm |
0.025mm |
| Overall Diameter (Width) |
max. 3.1mm |
3.055mm |
| Overall Diameter (Thickness) |
max. 0.65mm |
0.644mm |
| Pinhole |
Max. 3 hole/5m |
0 |
| Elongation |
Min. 30% |
46% |
| Flexibility and Adherence |
No crack |
No crack |
| Conductor Resistance (Ω/km at 20℃) |
Max 10.71 |
9.990 |
| Breakdown Voltage |
Min. 0.70kv |
3.53kv |
| Heat shock |
No Crack |
No Crack |
| Conclusion |
Pass |
