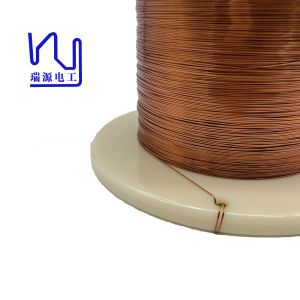

Superthin Rectangular Enameled Copper Wire 0.50mm*0.70mm Aiw

Name: Superthin Rectangular Enameled Copper Wire 050mm070mm Aiw
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.50mm*0.70mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : Super thin 0.50mm*0.70mm AIW Rectangular Enameled Copper Wire

Thermal rating : 220

Insulation Material : Amide imide

Width : 0.5mm

Thickness : 0.7mm

Conductor material : Copper

Key word : Super thin 0.50mm*0.70mm AIW Rectangular Enameled Copper Wire

Contact Now

Super thin 0.50mm*0.70mm AIW Rectangular Enameled Copper Wire

Enameled flat wire is a kind of wire commonly used in the electrical industry, and Ultra-fine high-temperature enamelled flat wire is a very good option. This ultra-fine enameled wire is a high temperature resistant wire with a temperature resistance rating of up to 220 degrees. Compared with other wires, it can be used in a higher temperature environment, and it is very suitable in applications such as generators and electric tools, or in a large number of circuits such as transformers, inductors, and automotive electrical systems.

Product name	Super thin 0.50mm*0.70mm AIW Rectangular Enameled Copper Wire
Coating material	AIW
Thermal class	220
Key word	Super thin 0.50mm*0.70mm AIW Rectangular Enameled Copper Wire

0.500*0.700 AIW rectangular enameled copper wire
Item		conductor dimension		Thickness Of Insulation		Overall dimension		Dielectric breakdown voltage	Pinhole	Conductor resistance	Elongation	Apperance	Flexibility	Adherence	Thermal shock
		Thickness	Width	Thickness	Width	Thickness	Width
Unit		mm	mm	mm	mm	mm	mm	kv	Pcs/m	Ω/km 20℃	%	No to be scratched No dirt	No crack	No crack	No crack
SPEC		0.500	0.700	0.025	0.025
	Max	0.509	0.760	0.040	0.040	0.550	0.800		3	62.250
	Min	0.491	0.640	0.010	0.010			0.700			30
No. 1		0.494	0.711	0.024	0.022	0.541	0.755	2.310	0	53.461	35	No to be scratched No dirt	Good	Good	Good
No. 2
								2.201
No. 4								2.240
No. 5								2.056
Ave		0.494	0.711	0.024	0.022	0.541	0.755	2.233
Number of reading		1	1	1	1	1	1	5
Min. reading		0.494	0.711	0.024	0.022	0.541	0.755	2.056
Max. reading		0.494	0.711	0.024	0.022	0.541	0.755	2.360
Range		0.000	0.000	0.000	0.000	0.000	0.000	0.304
Result		OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
