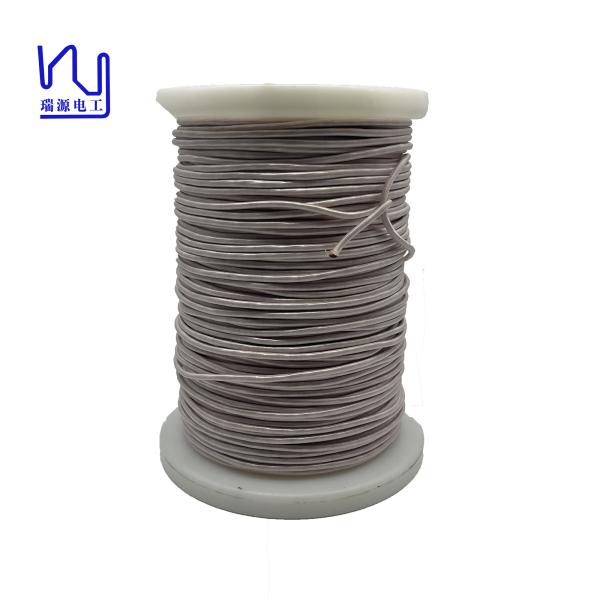

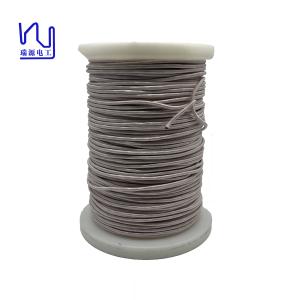

0.1mm*75 Enameled Magnet Wire Insulation Copper Ul Certificate

Name: 01mm75 Enameled Magnet Wire Insulation Copper Ul Certificate
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : Copper litz wire

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate

Diameter : 0.1mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Enamel

Rated Temperature : 155/180

Key word : 0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate

No. of strands : 75

Contact Now

0.1mm*600 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate

Improve signal transmission efficiency In the world of signal transmission, wire selection plays a vital role in ensuring optimal performance.

Silk covered litz wire is a type of wire that has gained recognition for its unique advantages. This cable is carefully crafted to provide superior functionality that greatly improves signal transmission efficiency.

Description Conductor diameter*Strand number		1 USTC- F 0.10*75
Single wire	Conductor diameter( mm)	0. 100
	Conductor diameter tolerance ( mm)	±0.003
	Minimal insulation thickness( mm)	0.009
	Maximal overall diameter ( mm)	0. 140
	Thermal Class(℃)	155
Strand Composition	Strand number	75
	Pitch(mm)	29± 5
	Stranding direction	S
Insulation layer	Category	Nylon
	Material specs( mm*mm or D)	300
	Times of Wrapping	1
	Overlap(%)or thickness( mm), mini	0 02
	Wrapping direction	S
Characteristics	Max O. D ( mm)	1.33
	Max pin holes faults/6m	20
	Max resistance ( Ω/ Km at20℃)	31.75
	Mini breakdown voltage(V )	2000

Key word

0.1mm*75 Enamel Insulation High Frequency Litz Wire Copper Magnet Wire UL Certificate

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.1mm*75 Enameled Magnet Wire Insulation Copper Ul Certificate
